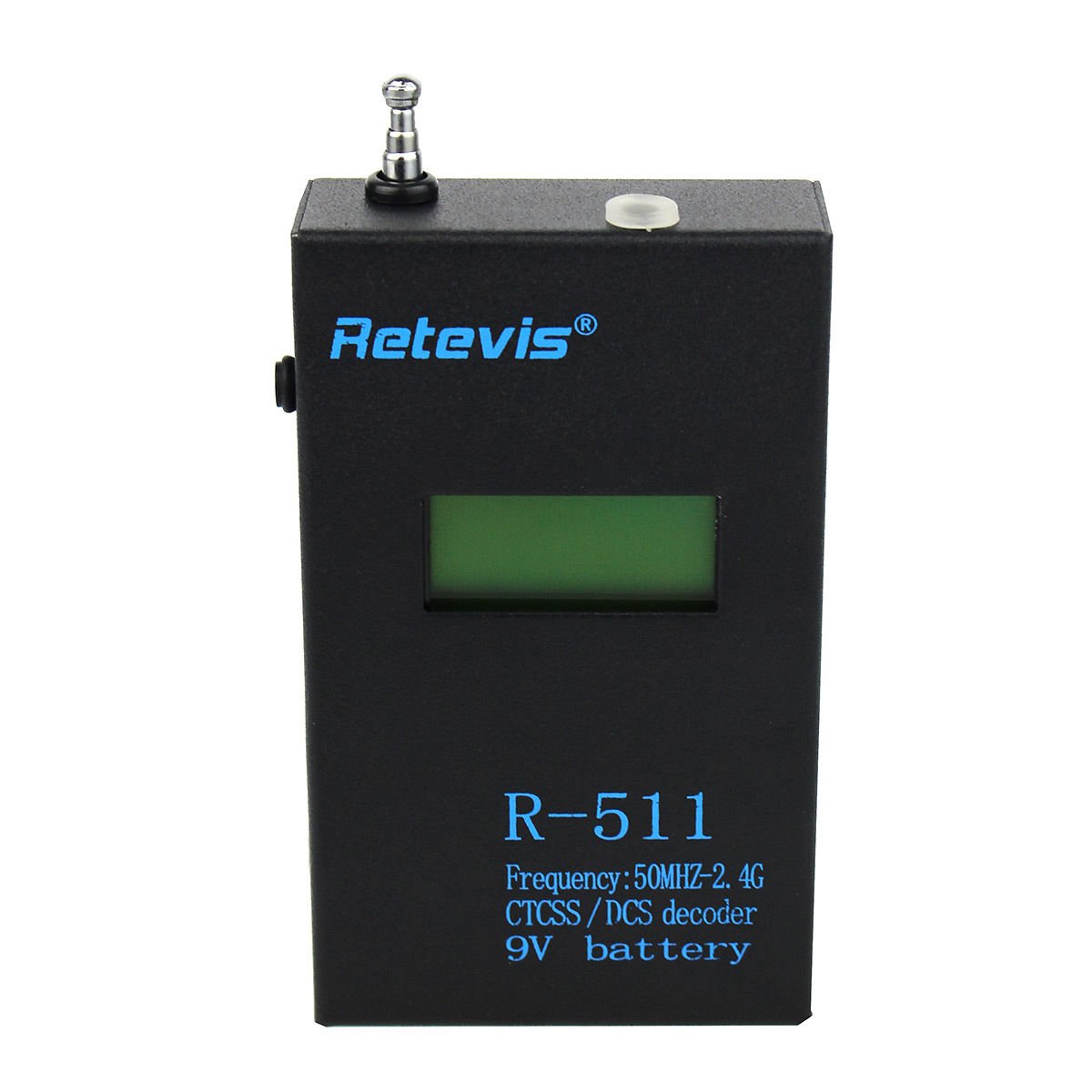

Retevis Frequency decoder Counter Meter Test, This Meter using dot-matrix LCD display is designed to detect frequency, CTCSS and DCS of radio device. This Frequency Meter adopts the antenna inductively measure, without the use of the feeder, direct detect, convenient and quick. The Frequency and CTCSS, DCS date test. Digital radio or Analog radio.
Frequency meter Feature：
- Professional testing Walker-Talkie equipment.
- The Frequency and CTCSS, DCS date test.Digital radio or Analog radio.
- LCD display, Data accuracy, Small volume, convenient to carry.
- First lineis frequency, second line is CTCSS.
Frequency meter Specification:
1.Frequency range: 50MHz~2.4GHz
2.Detect CTSS/DCS code within a second
3.Long press the power button can select 0.1K or 1K
4.0.1K will display 4-digit; 1K will display 3-digit
5.Uplink displays frequency; downlink displays CTCSS/DCS
6.Front and rear shells are made of Frosted iron shell which eliminating the fissile and fragile trouble from plastic housing
7.The best distance between the detected device and this Meter is 2-20cm

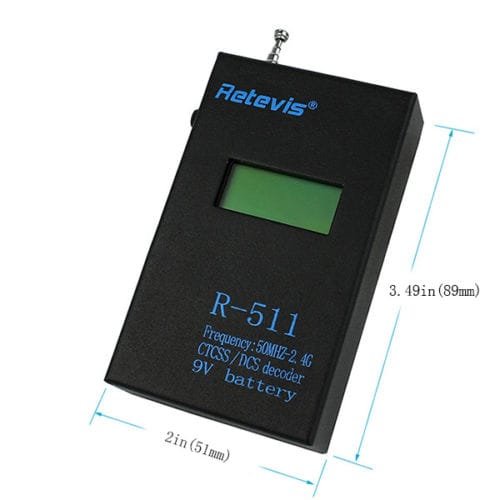

8.R-511 Dimensions:3.49in(89mm)X2in(51mm)X1.18in(30mm)cm(not include antenna)
9.Auto power off: 30 seconds
10.6F22 9V battery(include)

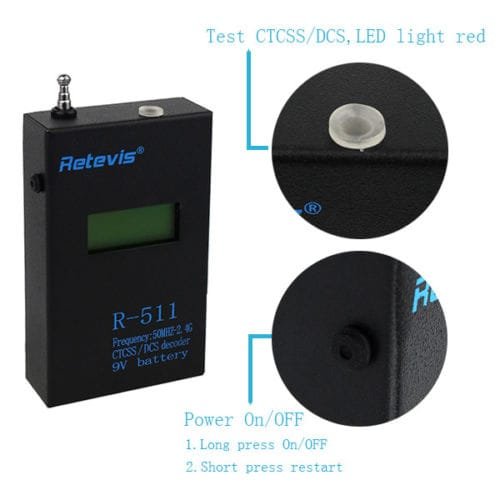

Notes: Its LED will light up until only the CTCSS is measured; if there is no CTCSS, the red light will not light up.
Frequency meter Usage:
When your walkie talkie hasn’t LED screen ,don’t know the frequency so that u can not turn to the same frequency with your other walkie talkie ? Don’t worry, just need a Frequency meter,u can test the frequency fast and keep high-efficient work ! Don’t need to buy the programming cable and plug in your computer ,just need 30 seconds, easy to complete different walkie talkie work together!

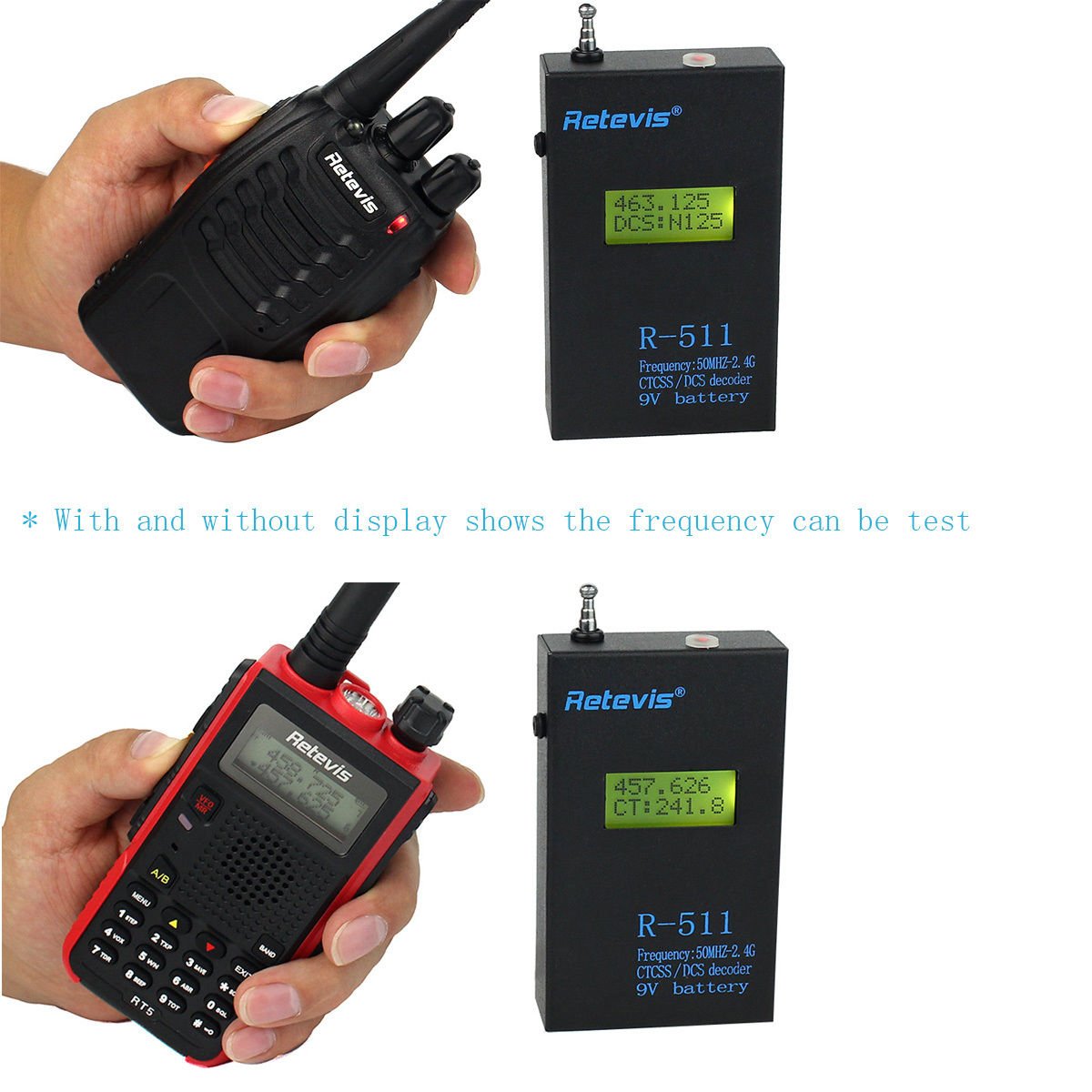

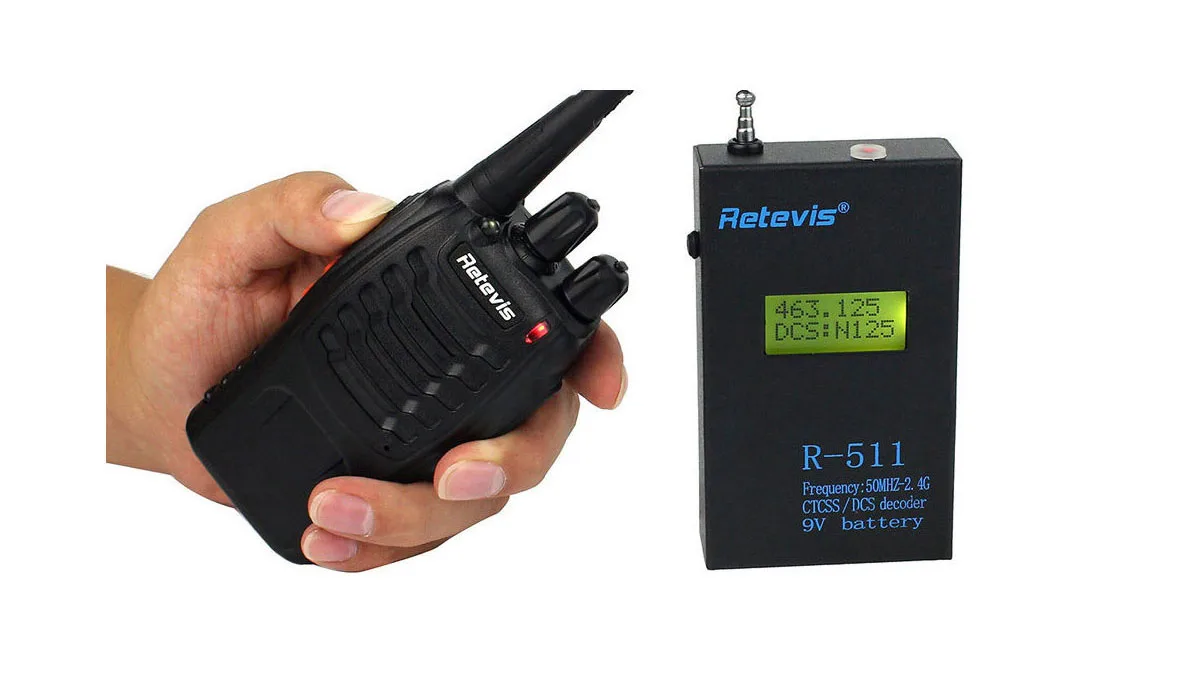

How to use frequency meter ?
- Frequency decoder Counter Meter Test and walkie talkie are both power on.
- Walkie talkie launched against the frequency meter , frequency and CTCSS will be in 2 to 5 seconds tested.

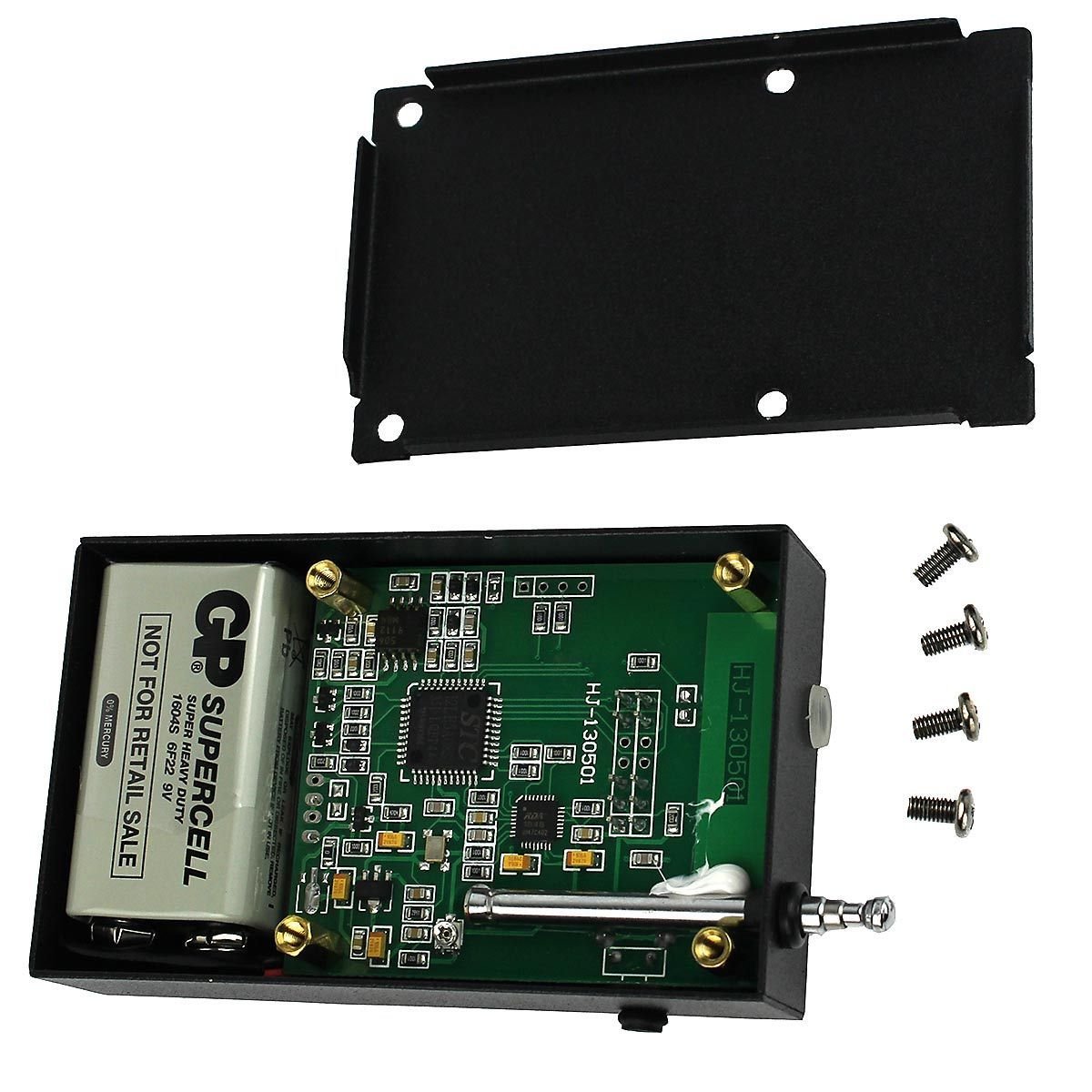

Built-In Structure :
-
Views: 694
I have 6 Retevis handheld radios and would like to buy the R-511 Frequency reader for it but it seems to be sold out , how do I buy one online from the company?
Hi, dear, very sorry for the delay! You mean this one:https://www.retevis.com/portable-handheld-frequency-counter/? if not, could you please share us a link? Thank you so much and have a nice day!
I’m looking for r-511 to purchase, this is the only model or you have more unites….
send info by email.
Thanks
Manuel Torres
Pit Brain 36
pitbrain36@gmail.com
hi, how many sets do you want? we will send email to you
