How to programme RT5 by software

RT5 Radio is with higher frequency ranger: UHF(470-520)MHZ, Color case, Short antenna, Battery capacity increased，8W Dual Band, Dual Display, Dual Standby. Also RT5 can program by software and hand.

Now let’s we check hot to programme RT5 by software.

Same Retevis radio model no. is with same default settings.
For new RT5, just switch the new radios in same channel, they can communicate directly.

Programme RT5 when you need make some changes:

Step:1 Please download and install RT5 USB driver (USB Universal Driver) in RETEVIS official website https://www.retevis.com/resources-center/
Step 2: You need a programming cable C9018A
Step 3: Connect your RT5 with you PC, using programming cable.
Step 4: Turn on the radio RT5.
Step 5: Now we come to RT5 software interface

Step 6: Choose the correct communication port
(check in computer-device manager)
Step 7: Click” Read from Radio” in “Program” Column

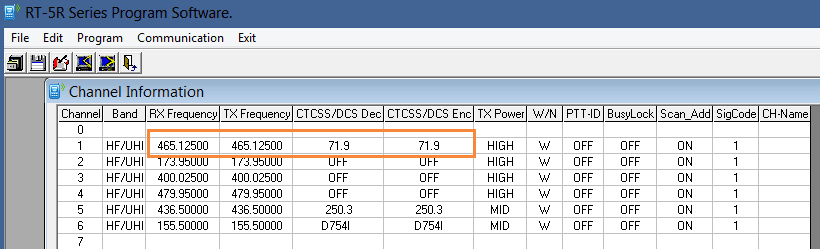

Step 8: Write the date, such as “RX frequency”, “TX frequency” CTC/DCS DEC and CTC/DCS ENC in to the channels
For example:
RX frequency:465.12500
CTC/DCS DEC: 71.9
TX frequency 465.12500
CTC/DCS ENC: 71.9

Finally Step 9: Click “Write to Radio”. Then all dates will be saved to radio.

Need know more about RT5? Please feel feel to write to us. vip@retevis.com, thanks.
