Retevis RT23 Cross-Band Repeater,Dual PTT, Dual Receiving simultaneously Walkie Talkie. What make RT23 unique？ Many friends say it is a good radio. today i will take you to learn more about it. there are many other features make you like it.
1.Cross-Band Repeater Function.
Turn on the cross-band repeater function(menu 6). You can choose one-way or two way repeater(menu 34). One way(single) means the repeater’s receive and transmit frequencies are specific. The radio will show 162R2375,426T2375. It indicates the repeater only can receive 162.2375,transmit 426.2375. Two way(double) means the repeater’s receive and transmit frequencies are random. The radio will show 162*2375,426*2375. It indicates the repeater not only can receive 162.2375,transmit 426.2375, but also can receive 426.2375,transmit 162.2375.
Cross-Band Repeater function also can increase the distance of communication. If you choose two way repeater, it canmake the UHF radio communicate with VHF radio. When you turn on the repeater function, you also can set if the radio PTT Transmitting(menu 33) and Speaker(menu 32) is available.
For example:
(1)RT23 radio A: RX 426.2375MHz, Offset: – 264.000MHz
RT23 radio B: RX 426.2375MHz, Offset: – 264.000MHz
RT23 radio C: Repeater RX 162.2375MHz, Offset: + 264.000MHz
Radio A could communicate with Radio B,It also can increase the distance of communication.
(2)RT23 radio A: RX&TX 162.2375MHz
RT23 radio B: RX&TX 426.2375MHz,
RT23 radio C: Two-way Repeater 162.2375MHz, Offset: + 264.000MHz
Radio A could communicate with Radio B

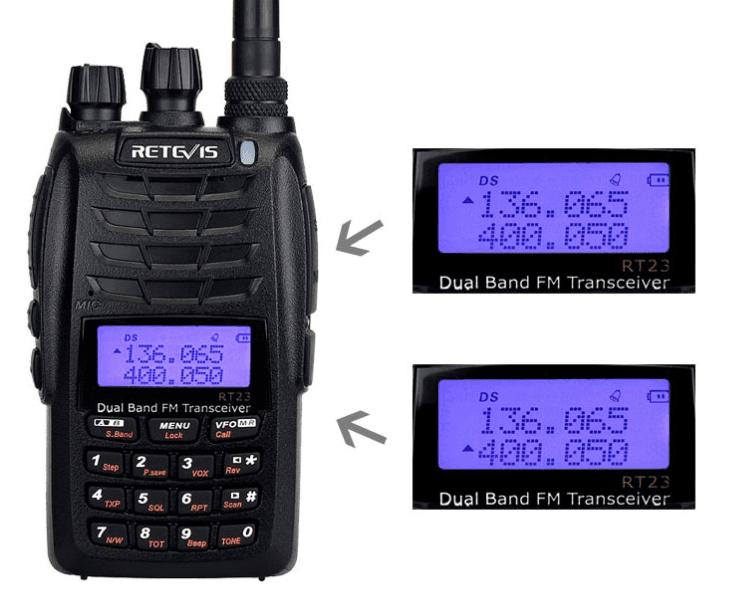

2.Dual Receive
RT23 is not same with other radios. Other radios can “watch” two channels. Mointor two different frequencies(even on different bands (VHF/UHF)) and the radio will monitor both frequencies giving priority to the first station to receive an incoming call.RT23 not only can “watch” both frequencies, but also can receive two incoming calls at the same time. What is more,you can set the volume mode by the menu 35. MAIN indicates the main frequency sound is louder when receiving, SUB is indicates the sub frequency sound is lounder when receiving. OFF indicates both main and sub frequency have same sound.
For example:
RT23 radio A: TX/RX 162.2375MHz,
RT23 radio B: TX/RX 426.2375MHz,
RT23 radio C: Dual Standby 426.2375MHz, 162.2375MHz,
Radio C can receive voice of Radio A&B at the same time.
3.Dual PTT
You can set a Sub-PTT by side key. If so you need not to choose the transmit channel. Push PTT transmit themain-channel, push another side key will transmit the sub-channel. Very convenient.

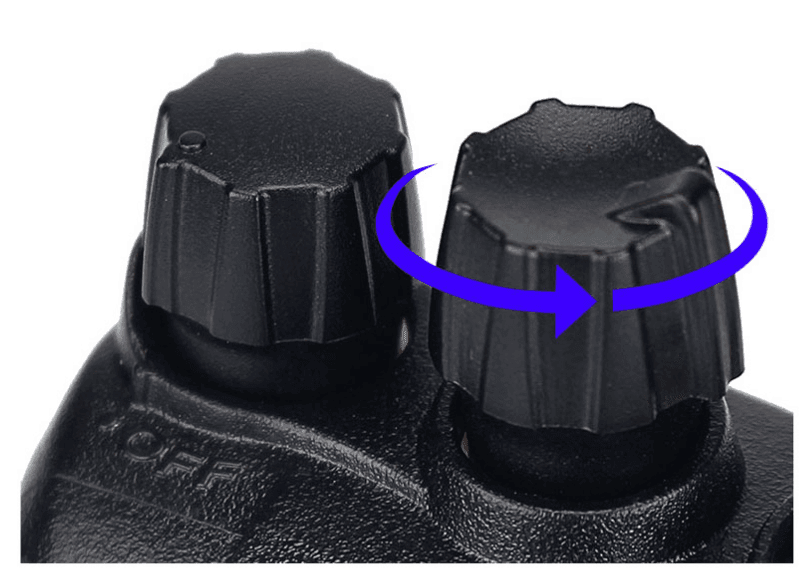

4.360 Degree Channel Knob
The channel knob can rotate 360 degree. You can operate the menu up and down by this knob. It is very convenient.
Main Features:
- Dual Band Dual Display Dual Standby Handheld Radio
- 128 Memory Channel
- 360 Degree Channel Knob
- Cross-Band Repeater Function(VHF to UHF or UHF to VHF)
- Frequency offset and direction programmable in repeater mode
- Dual PTT(Side key can setup Sub-Ch transmit)
- Dual Receiving(RX on the same/different bands of A&B areas simultaneously)
- VFO/MR/CH Mode
- 1600mAh
- Battery Save
- Strong and Stable Output Power (High:5W,Low:4W)
- CTCSS/DCS
- Scan(3 kinds of scan:Time,Carrier,Search)
- VOX
- TOT
- SQL
- PTT ID
- FM
- Multi Definition for Sidekeys
- DTMF Encoding&Decoding
- All/Group/Slective Calls
- SOS
- Remote Alarm
- Wide/Narrow Bandwidth Slection(25KHz/12.5KHz)
- Voice Guide:Chinese/English
- Chinese/English Screen Display
- Single-Tone Pulse Frequency:2100Hz/1750Hz/1450Hz/1000Hz(Signalling for activating repeater)
More detailed function introduction, please follow our blog or Facebook.
RT23 is a good radio. You deserve it. It will give you a special experience. If you want one, just enter our Amazon store.
