rt22p operation guide

The guide to operate the new walkie talkie RT22P

RT22P is based on the hot deal RT22 radio. But it is only 15mm thin and 102.5g (2 eggs). So, the new walkie talkie RT22P is a no-burden radio for users.

You can check the main functions here.

What are the functional buttons’ mean?

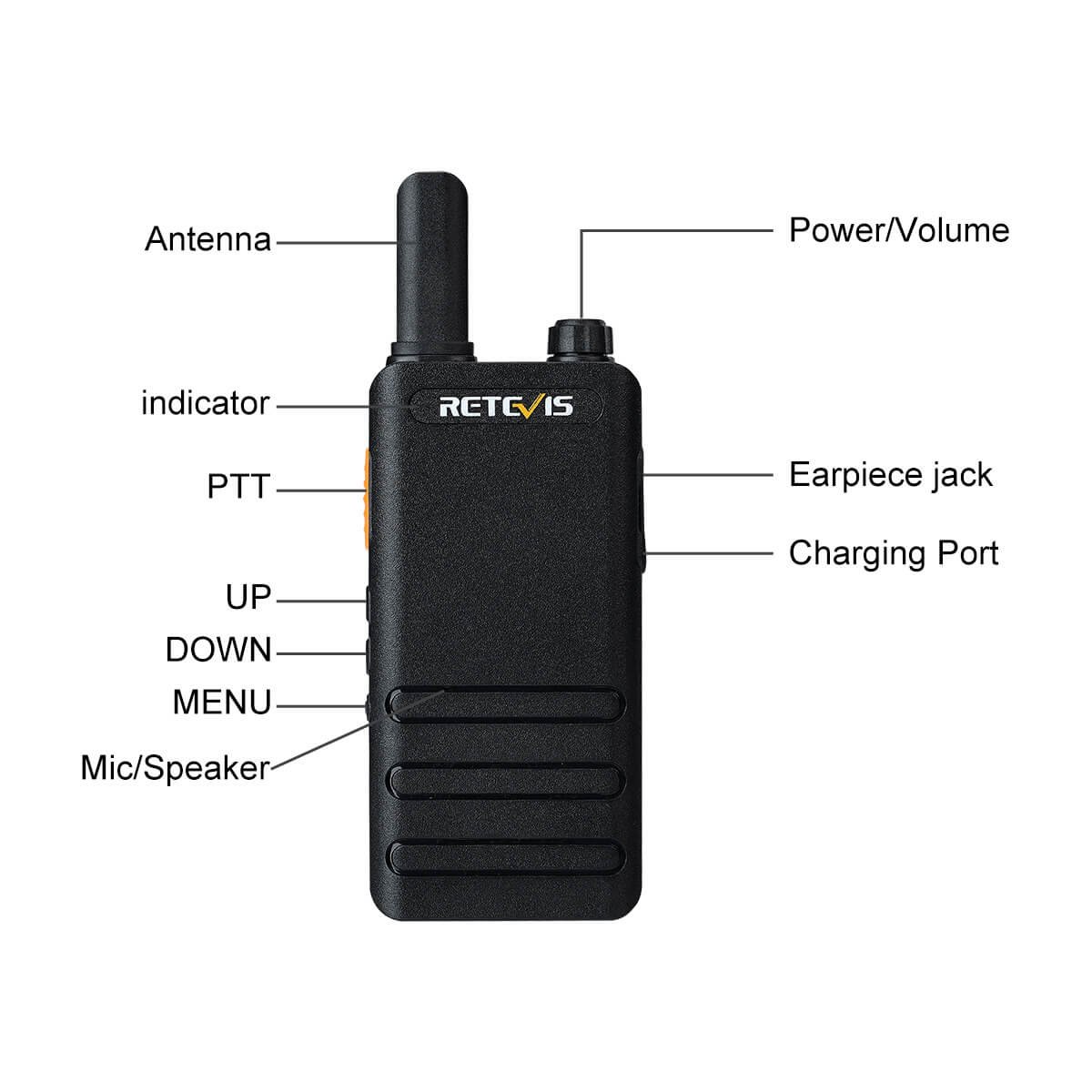

RT22P-Ultra-thin-Radio-function

You can see that there is a power/Volume knob on the top of the radio, and a super short antenna. All the buttons are on the left side of the radio, they are an orange PTT button, an up button, a down button, and a menu button. And on the right side, you can plug the compatible accessories like the headset, speaker, and programming cable.

Check the main functions on RT22P.

How to use the functions?

Monitor function. After turning on your radio, long press the UP button to enter the monitor mode, and release the UP button to return.

Scan function. You can tick the channel in the scan list, and define the side key on the scan function. Then when you long-press the DOWN button, your radio can start to scan the signals, and long-press the DOWN button to return.

Emergency alarm function. Define the sidekey on the alarm function. Long-press the DOWN button for 2s can activate the local and remote alarm. Press the PTT button to end.

VOX function. There are 2 methods to activate the function. On radios, you can switch to channel 7 and turn it off, hold the UP button to turn on your radio again, and the VOX is activated. Repeat the step to turn off the VOX. In the software, tick the VOX and write to your radio, you can turn on your VOX function.

Channel lock function. Long-press the mane button for 2s and hear a prompt, the current channel is locked. Repeat the step to unlock the channel.

About the programming cable

If you want to program the radio in the software, please add the programming cable J9138P to your cart. And 2 RT22P radios in a set, so if you are in a 10 members group, you can order 5 sets on our website.

The programming cable port is USB-C, it looks the same as your phone data cable or the charging cable, but you cannot use the data cable and the charging cable to program your radio. There is a chip in the J9138P port, and the chip is different from the data cable or charging cable.



Views: 254

2 thoughts on “The guide to operate the new walkie talkie RT22P”

  1. Please confirm: the RT22P, even using its programming software, is an FRS radio thus we cannot change the frequenciies came from the factory? So why bother buying a programming cable?

    1. Hi, yes, the programming software cannot edit the frequency, but you can set up the functions in the software. There are only 3 functional buttons on the radio, so you cannot set up all the functions on the radio. I think you install the software from our website to check if you need to program your radio.
