How to add channel on RT3S by hand?

RT3S is Dual Band DMR radio, Compatible with Mototrbo TierⅠ&Ⅱ, Group call match(promiscuous), Private call match(promiscuous), etc. Besides these, RT3S has a very useful function, add channel on RT3S by hand is convenient.


This is easily used when you have no computer available at hand, it seems amazing, right? (Sure,you have to click Program Radio in RT3S software in software in advance. )

Several steps to add channel on RT3S by hand.

Step A: Add channel

1.Make sure RT3S is not in VFO mode ( because in VHF mode, we can not add channel.)
2.In MR or channel mode
Menu–>Utilities–>Programm Radio–>Add Ch–>Digital–>Enter Ch name(like Ella)–RX frequency–TX frequency—Choose Contact–Add channel Saved.

Step B: Add the saved to channel to Zone

Menu–Zone–Zone list–Zone 1–Add channel—Choose the channel you added before to channel B–Add channel Successful.

Exit to the main Menu—Switch the channel to the Added channel(switch to CH mode)

Step C: Make balance settings inside Added channel

In current added channel–Menu–Utilities–Program Radio–Frequeny, channel name we already editted in first step when Add channel, choose the Color code–Time slot–Mic Level, Vox etc.

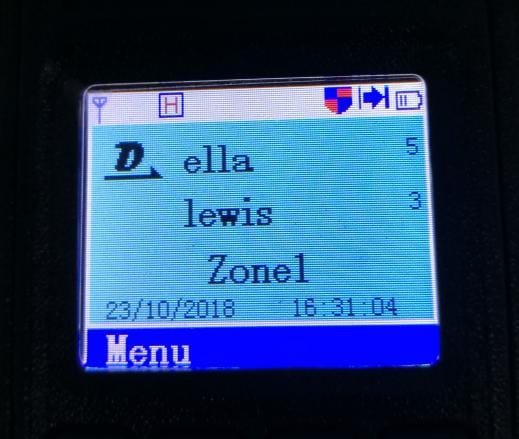

Exit—All finished. Channel “Ella” has make all settings by hand. You can talk with other partners now!

RT3S add channel

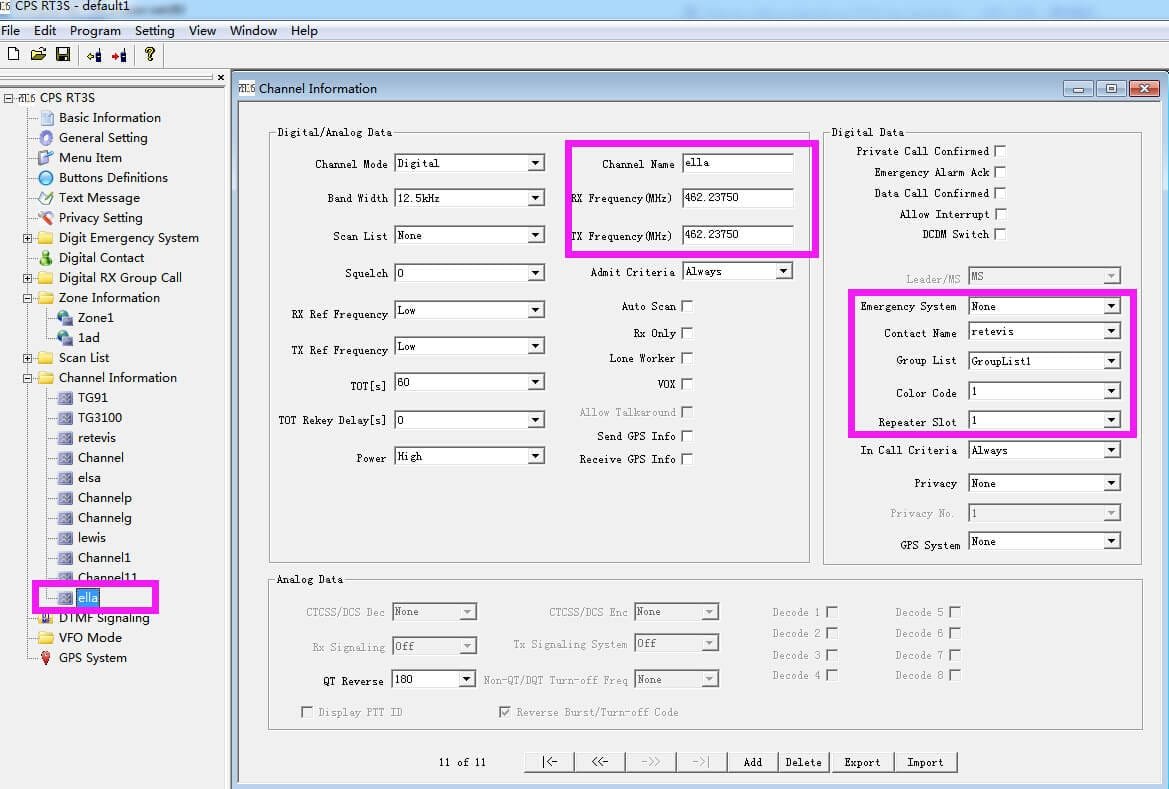

Let’s double confirm this channel is setted successfully in RT3S software.

Click Read from Radio, we will see that add channel on RT3S by hand we did successfully.

RT3S software

Done! Any other question about add channel on RT3S by hand, please feel free to comment on. Thank you!

Visits: 1358

6 thoughts on “How to add channel on RT3S by hand?”

  1. Wilfredo gonzalez rivera

    because my radio retevis rt3s radio program does not appear to me and I cannot program the radio that I must do to be able to program it thanks

  2. Hi, I have RT29 UHF and RT3s. Can I connect them with digital chanel ? I try it with same frequencies but no communication.

    With analog chanel work because I write CTCS and DCS codes-


    1. Hi, for your both radios RT29 uhf and RT3S, you only can communicate on the UHF analog mode.
      So please program your RT3S with the analog mode channel, then make sure the frequencies and CTCSS/dcs all sames

      If any question, please contact with us!
      Best regards

    1. hi, you need to set this program radio menu on your RT3S software.
      Menu Item-Utilities-Program radio(tick it)
