How to add channel on RT84 by hand?

RT84 is Dual Band DMR radio, Compatible with Mototrbo TierⅠ&Ⅱ, Group Call  Match, Private Call Match, price ecomonical and performance good. Besides these, RT84 has a very useful function, add channel on RT84 by hand is convenient.

This is easily used when you have no computer available for programming, it seems amazing, right? (Sure,you have to click Program Radio in RT84 software in software in advance. ) Do you know how to add channel on RT84 by hand?

Several steps to add channel on RT84 by hand.

Step A: Add channel

1.Make sure RT84 is not in VFO mode ( because in VFO mode, we can not add channel.)
2.In MR or channel mode
Menu–>Utilities–>Programm Radio–>Add Ch–>Digital–>Enter Ch name(like retevis)–RX frequency–TX frequency—Choose Contact–Add channel Saved.

Step B: Add the saved to channel to Zone

Menu–Zone–Zone list–Zone 1–Add channel—Choose the channel (retevis) you added before to channel B–Add channel Successful.

Exit to the main Menu—Switch the channel to the Added channel (switch to CH mode)

Step C: Make balance settings inside Added channel

In current added channel–Menu–Utilities–Program Radio–Frequeny, channel name we already editted in first step when Add channel, choose the Color code–Time slot–Mic Level, Vox etc.

Exit—All finished. Channel “retevis” has make all settings by hand. You can talk with other partners now!

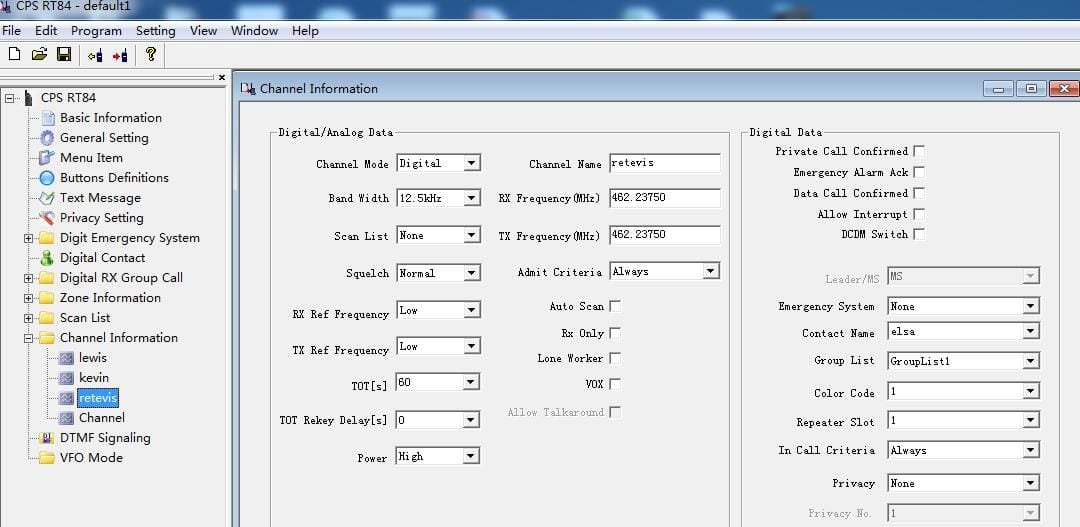

Let’s double confirm this channel is setted successfully in RT84 software.

Click Read from Radio, we will see that adding channel on RT84 by hand we did successfully. Done!

Actually we have other models, Retevis RT82, RT3S, HD1, that can add channel by hand.

Any other question about add channel on RT84 by hand, please feel free to comment on. Thank you!
